10600 nm | ZnSe | ULO
ððžð°ðð ðžð―ððķð°ð ðģðŋðžðš ðĻððĒ ðĒð―ððķð°ð ðģðžðŋ ððŽ,ðēðŽðŽ ðŧðš: ðĢðŋðēð°ðķððķðžðŧ ðŪðŧðą ðĐðēðŋððŪððķðđðķðð

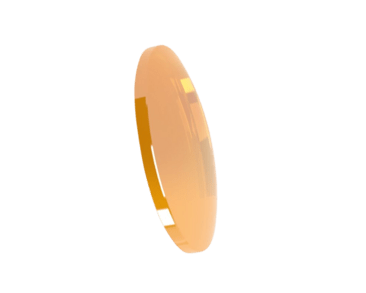

The CO2 focus optics from ULO are made of highest quality zinc selenide (ZnSe) and have been specially developed for the wavelength of 10,600 nm, offering maximum precision and durability for industrial laser applications.
They are available in different models and are perfectly suited for laser-based engraving, marking and cutting applications in a wide range of industrial sectors.
Special Features:
Highest manufacturing accuracy
Working areas up to 1500 x 1500 mm
Focal lengths 75 - 2122 mm
Typical Laser Applications:
Marking
Engraving
Cutting
Typical Materials:
plastics
Foils & Labels
Lacquer
wood
Paper / Cardboard
and more
10600 nm | ZnSe | ULO
| Model Name | Wavelength | Nominal Focal Length | Maximum Scan Field | Maximum Input Beam Diameter | Minimum Spot Size | Lens Material | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|
| 48TSL75 | 10600 nm | 75 mm | 50 mm x 50 mm | 15 mm | 171 mm | ZnSe | Air | ||
| 48TSL90 | 10600 nm | 90 mm | 60 mm x 60 mm | 15 mm | 174 mm | ZnSe | Air | ||
| 48TSL100 | 10600 nm | 101 mm | 70 mm x 70 mm | 15 mm | 181 mm | ZnSe | Air | ||
| 48TSL150 | 10600 nm | 149 mm | 105 mm x 105 mm | 15 mm | 219 Ξm | ZnSe | Air | ||
| 48TSL175 | 10600 nm | 175 mm | 120 mm x 120 mm | 15 mm | 243 mm | ZnSe | Air | ||
| 48TSL180 | 10600 nm | 179 mm | 125 mm x 125 mm | 15 mm | 247 mm | ZnSe | Air | ||
| 48TSL200 | 10600 nm | 200 mm | 140 mm x 140 mm | 15 mm | 269 mm | ZnSe | Air | ||
| 48TSL225 | 10600 nm | 225 mm | 155 mm x 155 mm | 15 mm | 296 mm | ZnSe | Air | ||
| 48TSL250 | 10600 nm | 249 mm | 175 mm x 175 mm | 15 mm | 320 mm | ZnSe | Air | ||
| 48TSL300 | 10600 nm | 298 mm | 210 mm x 210 mm | 15 mm | 373 mm | ZnSe | Air | ||
| 48TSL360 | 10600 nm | 362 mm | 250 mm x 250 mm | 15 mm | 445 mm | ZnSe | Air | ||
| 48TSL400 | 10600 nm | 394 mm | 280 mm x 280 mm | 15 mm | 481 mm | ZnSe | Air | ||
| 48TSL435 | 10600 nm | 432 mm | 300 mm x 300 mm | 15 mm | 525 mm | ZnSe | Air | ||
| 48TSL482 | 10600 nm | 481 mm | 340 mm x 340 mm | 15 mm | 581 mm | ZnSe | Air | ||
| 48TSL529 | 10600 nm | 529 mm | 370 mm x 370 mm | 15 mm | 606 mm | ZnSe | Air | ||
| 48TSL600 | 10600 nm | 600 mm | 415 mm x 415 mm | 15 mm | 684 mm | ZnSe | Air | ||
| 48TSL720 | 10600 nm | 716 mm | 500 mm x 500 mm | 15 mm | 850 mm | ZnSe | Air | ||
| 48TSL782 | 10600 nm | 782 mm | 550 mm x 550 mm | 15 mm | 888 mm | ZnSe | Air | ||
| 48TSL848 | 10600 nm | 848 mm | 600 mm x 600 mm | 15 mm | 1,000 mm | ZnSe | Air | ||
| 48TSL977 | 10600 nm | 977 mm | 680 mm x 680 mm | 15 mm | 1,150 mm | ZnSe | Air | ||
| 48TSL1150 | 10600 nm | 1,183 mm | 840 mm x 840 mm | 15 mm | 1,390 mm | ZnSe | Air | ||
| 48TSL1200 | 10600 nm | 1,201 mm | 850 mm x 850 mm | 15 mm | 1,410 Ξm | ZnSe | Air | ||
| 48TSL1285 | 10600 nm | 1,285 mm | 920 mm x 920 mm | 15 mm | 1,520 mm | ZnSe | Air | ||
| 48TSL1409 | 10600 nm | 1,409 mm | 1,000 mm x 1,000 mm | 15 mm | 1,650 mm | ZnSe | Air | ||
| 48TSL1577 | 10600 nm | 1,577 mm | 1,120 mm x 1,120 mm | 15 mm | 1,840 mm | ZnSe | Air | ||
| 48TSL1746 | 10600 nm | 1,746 mm | 1,256 mm x 1,256 mm | 15 mm | 2,040 mm | ZnSe | Air | ||
| 48TSL2122 | 10600 nm | 2,122 mm | 1,500 mm x 1,500 mm | 15 mm | 2,420 mm | ZnSe | Air |
