f-250T-14-510-550

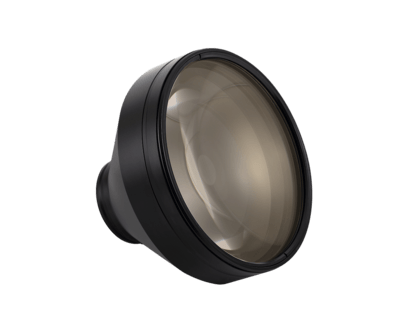

•Telecentric Fused Silica Lens
•Wavelength 510 - 550 nm
•Nominal focal length 250 mm
•Max. input beam diameter 14 mm
•Maximum working area 150 x 150 mm
•Wavelength 510 - 550 nm
•Nominal focal length 250 mm
•Max. input beam diameter 14 mm
•Maximum working area 150 x 150 mm
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 510 - 550 nm |
| Maximum Input Beam Diameter | 14 mm |
| Anti-Reflective Coating | Standard |
| Optics | |
|---|---|
| Nominal Focal Length | 250 mm |
| Maximum Scan Field | 150 mm x 150 mm |
| Working Distance | 361.810 mm |
| Flange Focal Length | 528.810 mm |
| Minimum Spot Size | 8.82 μm |
| Mounting Thread | M85x1 |
| Lens Diameter | 250 mm |
| Telecentric Error | 1.8 ° |
| Lens Material | Fused Silica |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
510 - 550 nm | Fused Silica | Telecentric
| Model Name | Wavelength | Nominal Focal Length | Working Distance | Maximum Scan Field | Maximum Input Beam Diameter | Minimum Spot Size | Telecentric Error | Lens Material | Mounting Thread | Lens Diameter | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| f-100T-14-510-550-v2 | 510 - 550 nm | 100 mm | 133.000 mm | 50 mm x 50 mm | 14 mm | 3.62 μm | 2.1 ° | Fused Silica | M85x1 | 120 mm | Air | ||
| f-120T-10-510-550 | 510 - 550 nm | 120 mm | 166.741 mm | 65 mm x 65 mm | 10 mm | 10.44 μm | 20 ° | Fused Silica | M85x1 | 10 mm | Air | ||
| f-167T-14-510-550 | 510 - 550 nm | 167 mm | 233.233 mm | 86 mm x 86 mm | 14 mm | 11.61 μm | 3 ° | Fused Silica | M85x1 | 140 mm | Air | ||
| f-250T-14-510-550 | 510 - 550 nm | 250 mm | 361.810 mm | 150 mm x 150 mm | 14 mm | 8.82 μm | 1.8 ° | Fused Silica | M85x1 | 250 mm | Air |
