PS-2D-Weld-Series
Discover the PS-2D-Weld series: Powerful and precise for your welding applications.

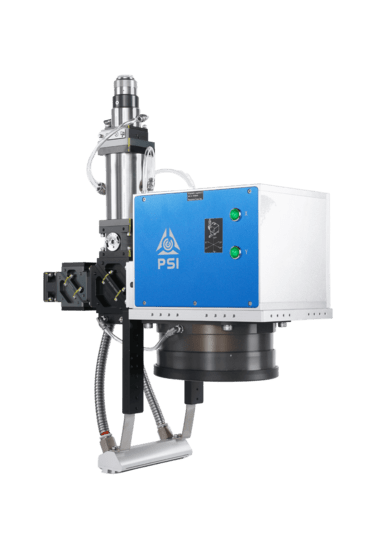

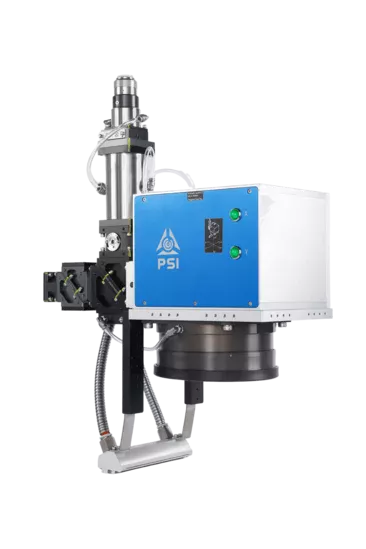

The PS-2D-Weld-Models are specially designed for welding applications with high laser power.
These scan systems combine collimator module, galvanometer scanner, F-Theta objective, air knife and interface control card – perfectly matched for optimal performance. Optionally also with adapter for camera and process monitoring.
Depending on individual demands, project-specific customizations can be made to the models to meet your requirements.
Special Features:
High power compatibility
Compatible with up to 8000 Watt (IR, CW), ideal for demanding welding processes.
Precise beam control
For the best results thanks to dynamic and highly accurate positioning.
Long-term stability
Developed for long-term use without compromising on performance.
Typical Laser Applications:
Welding
Typical Materials:
Stainless Steel
Titanium
Aluminium
Copper
plastics
and more
PS-2D-Weld-Series
| Model Name | Wavelength | Maximum Input Beam Diameter | Marking Speed | Positioning Speed (<) | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Max. Laser Power @ 1064 nm CW (<) | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PS-2000-Weld | 1030 - 1080 nm | 20 mm | 3 mm/s | 27 m/s | 15 kg | 504.8 mm | 389.09 mm | 222.98 mm | 2,000 W | Water | ||
| PS-3000-Weld | 1030 - 1080 nm | 30 mm | 2 mm/s | 14.5 m/s | 17 kg | 504.8 mm | 389.09 mm | 222.98 mm | 3,000 W | Water | ||
| PS-6000-Weld | 1030 - 1080 nm | 30 mm | 1 mm/s | 12.5 m/s | 18.5 kg | 582.46 mm | 378.06 mm | 193 mm | 6,000 W | Water | ||
| PS-8000-Weld | 1030 - 1080 nm | 30 mm | 1 m/s | 14.5 m/s | 18.5 kg | 601.12 mm | 333.31 mm | 208.51 mm | 8,000 W | Water |
