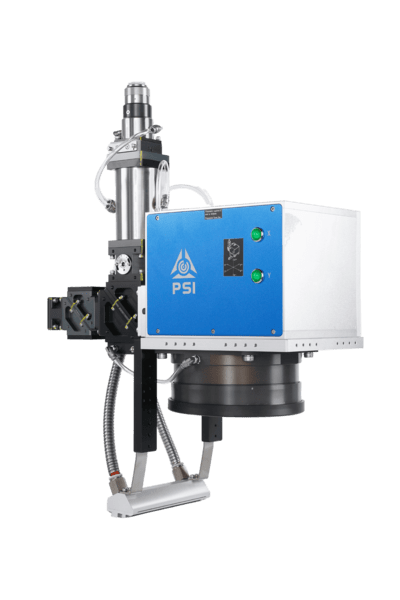

PS-6000-Weld
• Integrated solution with high power compatibility
• Specifically developed for demanding laser welding applications
• High dynamics, positioning accuracy, low temperature drift and long-term stability
• Specifically developed for demanding laser welding applications
• High dynamics, positioning accuracy, low temperature drift and long-term stability
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1030 - 1080 nm |
| Maximum Input Beam Diameter | 30 mm |
| Mechanical Dimensions Width | 193 mm |
| Mechanical Dimensions Depth | 582.46 mm |
| Mechanical Dimensions Height | 378.06 mm |
| Net Weight | 18.5 kg |
| Scan Head | |
|---|---|
| Control Interface | XY2-100 |
| Maximum optical Deflection (±) | 0.35 rad |
| Resolution | 12 µrad |
| Repeatability (RMS) (<) | 2 µrad |
| Long-Term-Drift per Axis 8h (<) | 80 µrad |
| Tracking Delay | 0.5 ms |
| Max. Laser Power @ 1064 nm CW (<) | 6,000 W |
| Marking Speed | 1 mm/s |
| Positioning Speed (<) | 12.5 m/s |
| Max. Gain-Drift per Axis | 20 ppm/K |
| Max. Offset-Drift per Axis | 20 µrad/K |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Water |
PS-2D-Weld-Series
| Model Name | Wavelength | Maximum Input Beam Diameter | Marking Speed | Positioning Speed (<) | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Max. Laser Power @ 1064 nm CW (<) | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PS-2000-Weld | 1030 - 1080 nm | 20 mm | 3 mm/s | 27 m/s | 15 kg | 504.8 mm | 389.09 mm | 222.98 mm | 2,000 W | Water | ||
| PS-3000-Weld | 1030 - 1080 nm | 30 mm | 2 mm/s | 14.5 m/s | 17 kg | 504.8 mm | 389.09 mm | 222.98 mm | 3,000 W | Water | ||
| PS-6000-Weld | 1030 - 1080 nm | 30 mm | 1 mm/s | 12.5 m/s | 18.5 kg | 582.46 mm | 378.06 mm | 193 mm | 6,000 W | Water | ||
| PS-8000-Weld | 1030 - 1080 nm | 30 mm | 1 m/s | 14.5 m/s | 18.5 kg | 601.12 mm | 333.31 mm | 208.51 mm | 8,000 W | Water |
