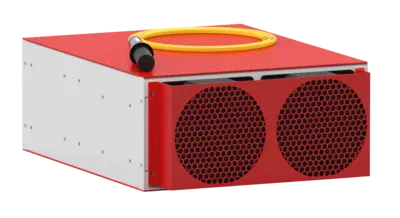

CW-800MM-A
• Extra compact and lightweight design
• Customizable fiber cores and lengths
• No additional cooling required
• Outstanding energy efficiency
• Customizable fiber cores and lengths
• No additional cooling required
• Outstanding energy efficiency
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1080 nm |
| Mechanical Dimensions Width | 383 mm |
| Mechanical Dimensions Depth | 365 mm |
| Mechanical Dimensions Height | 122 mm |
| Net Weight | 15.5 kg |
| Anti-Reflective Coating | Standard |
| Laser | |
|---|---|
| Beam Quality(Depending on fiber core diameter) | 2.1 <M² / 6 <M² / 10.5 <M² |
| Modulation Frequency | 1 Hz - 10 kHz |
| Fiber Core Diameter | 50 µm / 100 µm / 150 µm |
| Fiber Length | 20 m / 25 m |
| Laser Operation Mode | CW, modulated |
| Aiming Beam | Standard |
| Output Type | QBH |
| Beam Parameter Product (BPP)(Depending on fiber core diameter) | 0.7 mm*mrad / 2 mm*mrad / 3.5 mm*mrad |
| Nominal Output Power CW | 800 W |
| Power Tuning Range | 10 - 100 % |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
CW-Laser | Multimode | Air Cooled
| Model Name | Wavelength | Nominal Output Power CW | Beam Quality | Beam Parameter Product (BPP) | Modulation Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CW-200MM-A | 1080 nm | 200 W | 5 <M² / 13 <M² / 22 <M² / 30 <M² | 1.719 mm*mrad / 4.469 mm*mrad / 7.409 mm*mrad / 10.32 mm*mrad | 1 Hz - 4 kHz | 8.9 kg | 265 mm | 100 mm | 340 mm | Air | ||
| CW-300MM | 1080 nm | 300 W | 5 <M² / 13 <M² | 1.719 mm*mrad / 4.469 mm*mrad | 1 Hz - 20 kHz | 32 kg | 580 mm | 174.5 mm | 483 mm | Air | ||
| CW-600MM-A | 1080 nm | 600 W | 2.1 <M² / 6 <M² / 10.5 <M² | 0.7 mm*mrad / 2 mm*mrad / 3.5 mm*mrad | 1 Hz - 10 kHz | 15.5 kg | 365 mm | 122 mm | 383 mm | Air | ||
| CW-800MM-A | 1080 nm | 800 W | 2.1 <M² / 6 <M² / 10.5 <M² | 0.7 mm*mrad / 2 mm*mrad / 3.5 mm*mrad | 1 Hz - 10 kHz | 15.5 kg | 365 mm | 122 mm | 383 mm | Air | ||
| CW-1200MM-A | 1080 nm | 1,200 W | 2.1 <M² / 6 <M² / 10.5 <M² | 0.7 mm*mrad / 2 mm*mrad / 3.5 mm*mrad | 1 Hz - 10 kHz | 30.5 kg | 456 mm | 181.5 mm | 510 mm | Air |
