![BS-Series](https://www.vonjan-tech.de/_Resources/Persistent/2/e/7/e/2e7eda08d2ad5fae3eb33da7f46be1f8d8f134a5/Ouya_BS_Serie_Ouya_Ablenkeinheit-366x305.png)

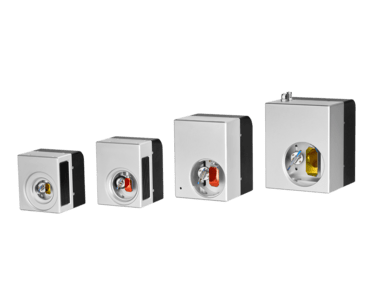

BS-Series
The BS-Series scan heads from VONJAN Technology are compact and versatile 2-axis laser deflection units for beam diameters from 8 to 30 mm. With their space-saving and robust design, they are ideal for integration into compact industrial laser systems.
Mirror coatings for wavelengths from 355 to 10,600 nm and laser powers up to 4 kW (CW / 1064 nm) are available.
In addition to high reliability, the BS series scan heads offer a very attractive price/performance ratio with very short delivery times.
Mirror coatings for wavelengths from 355 to 10,600 nm and laser powers up to 4 kW (CW / 1064 nm) are available.
In addition to high reliability, the BS series scan heads offer a very attractive price/performance ratio with very short delivery times.
Special Features:
Wavelengths from 355 to 10,600 nm
Compact temperature optimised design
Outstanding cost-effectiveness
Laser powers up to 4000 Watt, CW 1064 nm
High precision for industrial use
Typical Laser Applications:
Marking
Drilling
Engraving
Cutting
Structuring
Welding
Typical Materials:
Stainless Steel
![](https://www.vonjan-tech.de/_Resources/Persistent/8/b/d/0/8bd0bbf2ea9c46510b887fb88776d5ad3fc7af30/Sheet%20Metal.jpeg)
Titanium
![](https://www.vonjan-tech.de/_Resources/Persistent/7/3/4/6/73465415a5d9043816747d6fc1175e1e5e6a64eb/Titan.jpeg)
Aluminium
![](https://www.vonjan-tech.de/_Resources/Persistent/1/8/b/4/18b462af4fbf5f92513f031056f4c875c154537a/Aluminium.jpeg)
Copper
![](https://www.vonjan-tech.de/_Resources/Persistent/f/7/5/4/f7545d96bac491f7025e29a54df4ed345e75abe1/Sheet%20Copper.jpeg)
Gold
![](https://www.vonjan-tech.de/_Resources/Persistent/5/f/d/e/5fdeafc46ccbfd7611dd12a13ada19d84d97a022/Gold.jpg)
plastics
![](https://www.vonjan-tech.de/_Resources/Persistent/a/5/2/a/a52a37de78d02e7f654571b780d961c6170eb064/Plastic.jpeg)
glass
![](https://www.vonjan-tech.de/_Resources/Persistent/8/0/6/5/8065c594aa256fe8f83cb4b5dc81e54fa6a9d344/Glass.jpeg)
ceramics
![](https://www.vonjan-tech.de/_Resources/Persistent/7/4/e/0/74e0c0db97b5de9bb5702e105d03666119851a03/Ceramic.jpeg)
paper / cardboard
![](https://www.vonjan-tech.de/_Resources/Persistent/c/4/a/f/c4af1749e9efca7ba0afd1e5cc15b803fab7602b/Paper2.jpeg)
silicon
![](https://www.vonjan-tech.de/_Resources/Persistent/b/9/8/c/b98c708cb1a33231399e22cb2b185518c3754e8f/Silicon.jpg)
foils & labels
![](https://www.vonjan-tech.de/_Resources/Persistent/8/7/d/6/87d6ecca795811198d61685398676e3a699a9661/Foils.jpg)
wood
![](https://www.vonjan-tech.de/_Resources/Persistent/1/8/f/9/18f91b073a26bf51199b7df0a938616f8dc02417/Wood.jpeg)
BS-Series
Model Name | Wavelength | Maximum Input Beam Diameter | Marking Speed | Writing Speed | Positioning Speed (<) | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Max. Laser Power @ 1064 nm CW (<) | Cooling Method | Inquiry | Detail |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BS-8 | 355 nm / 532 nm / 1064 nm | 8 mm | 3 m/s | 900 cps | 20 m/s | 1.2 kg | 109 mm | 92 mm | 89 mm | 50 W | Passive | ||
BS-10 | 355 nm / 532 nm / 1064 nm / 10600 nm | 10 mm | 5 m/s | 600 cps | 15 m/s | 1.9 kg | 114 mm | 100.9 mm | 96.5 mm | 100 W | Passive | ||
BS-10 Kit | 355 nm / 1064 nm | 10 mm | 7,000 mm/s | 500 cps | 15 m/s | 0.9 kg | 78.6 mm | 75.25 mm | 88 mm | 100 W | Passive | ||
BS-12 | 532 nm / 1064 nm / 10600 nm | 12 mm | 3 m/s | 500 cps | 12 m/s | 2 kg | 114 mm | 97.4 mm | 99 mm | 300 W | Passive | ||
BS-14 | 355 nm / 450 nm / 1064 nm / 10600 nm | 14 mm | 3 m/s | 450 cps | 8 m/s | 2.4 kg | 133.5 mm | 105.5 mm | 103 mm | 500 W | Passive / Passive without cooling fins | ||
BS-20 | 450 nm / 1064 nm / 10600 nm | 20 mm | 2 m/s | 320 cps | 6 m/s | 3 kg | 172 mm | 140 mm | 125 mm | 3,000 W | Passive | ||
BS-20-W | 1030 - 1080 nm | 20 mm | 2 m/s | 320 cps | 6 m/s | 3 kg | 172 mm | 140 mm | 125 mm | 3,000 W | Water | ||
BS-30 | 1064 nm / 10600 nm | 30 mm | 1 m/s | 220 cps | 3 m/s | 5 kg | 198 mm | 160 mm | 158 mm | 4,000 W | Air | ||
BS-30-W | 1030 - 1080 nm | 30 mm | 1 m/s | 220 cps | 3 m/s | 5 kg | 198 mm | 160 mm | 158 mm | 6,000 W | Water |
