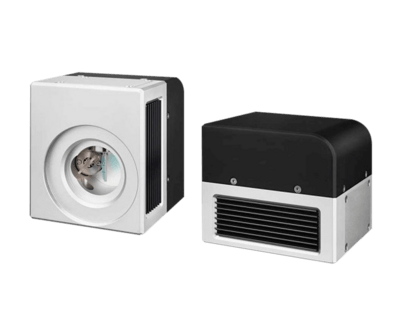

BS-12
• 2-axis laser deflection unit, aperture 12 mm
• High precision for industrial use
• Compact temperature optimized design
• Outstanding cost-effectiveness
• High precision for industrial use
• Compact temperature optimized design
• Outstanding cost-effectiveness
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 532 nm / 1064 nm / 10600 nm |
| Maximum Input Beam Diameter | 12 mm |
| Mechanical Dimensions Width | 99 mm |
| Mechanical Dimensions Depth | 114 mm |
| Mechanical Dimensions Height | 97.4 mm |
| Net Weight | 2 kg |
| Scan Head | |
|---|---|
| Control Interface | XY2-100-Standard |
| Maximum optical Deflection (±) | 0.393 rad |
| Resolution | 12 µrad |
| Repeatability (RMS) (<) | 22 µrad |
| Long-Term-Drift per Axis 8h (<) | 300 µrad |
| Tracking Delay | 0.18 ms |
| Max. Laser Power @ 1064 nm CW (<) | 300 W |
| Marking Speed | 3 m/s |
| Positioning Speed (<) | 12 m/s |
| Max. Gain-Drift per Axis | 80 ppm/K |
| Max. Offset-Drift per Axis | 30 µrad/K |
| Writing Speed | 500 cps |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Passive air-cooled |
BS-Series
| Model Name | Wavelength | Maximum Input Beam Diameter | Marking Speed | Writing Speed | Positioning Speed (<) | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Max. Laser Power @ 1064 nm CW (<) | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS-8 | 355 nm / 532 nm / 1064 nm | 8 mm | 3 m/s | 900 cps | 20 m/s | 1.2 kg | 109 mm | 92 mm | 89 mm | 50 W | Passive air-cooled | ||
| BS-10 | 355 nm / 532 nm / 1064 nm / 10600 nm | 10 mm | 5 m/s | 600 cps | 15 m/s | 1.9 kg | 114 mm | 100.9 mm | 96.5 mm | 100 W | Passive air-cooled | ||
| BS-10 Kit | 355 nm / 1064 nm | 10 mm | 7,000 mm/s | 500 cps | 15 m/s | 0.9 kg | 78.6 mm | 75.25 mm | 88 mm | 100 W | Passive air-cooled | ||
| BS-12 | 532 nm / 1064 nm / 10600 nm | 12 mm | 3 m/s | 500 cps | 12 m/s | 2 kg | 114 mm | 97.4 mm | 99 mm | 300 W | Passive air-cooled | ||
| BS-14 | 355 nm / 450 nm / 1064 nm / 10600 nm | 14 mm | 3 m/s | 450 cps | 8 m/s | 2.4 kg | 133.5 mm | 105.5 mm | 103 mm | 500 W | Passive air-cooled / Passive without cooling fins | ||
| BS-20 | 450 nm / 1064 nm / 10600 nm | 20 mm | 2 m/s | 320 cps | 6 m/s | 3 kg | 172 mm | 140 mm | 125 mm | 3,000 W | Passive air-cooled | ||
| BS-20-W | 1030 - 1080 nm | 20 mm | 2 m/s | 320 cps | 6 m/s | 3 kg | 172 mm | 140 mm | 125 mm | 3,000 W | Water | ||
| BS-30 | 1064 nm / 10600 nm | 30 mm | 1 m/s | 220 cps | 3 m/s | 5 kg | 198 mm | 160 mm | 158 mm | 4,000 W | Air | ||
| BS-30-W | 1030 - 1080 nm | 30 mm | 1 m/s | 220 cps | 3 m/s | 5 kg | 198 mm | 160 mm | 158 mm | 6,000 W | Water |
